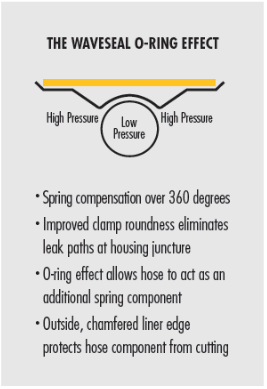

Tridon WaveSeal360 clamps are comprised of two main parts, the clamp assembly and the wave profile SmartLiner. The wave profile SmartLiner is high quality, thin gauge stainless steel specifically tempered to expand and contract with temperature variations. The clamp rides on SmartLiner so pressure is more evenly distributed around the hose.
Band Material: 300SS, Screw 410SS
Band Thickness Max: 0.67
Band Width Max (mm): 14.27
Nut Hex Size S (mm) Material:
Max Recommended Installation Torque (Nm): 8.5
Housing Width Max HW (mm): 16.9
Housing Height Max HH (mm): 13.2
Liner Width: 17.3
